2MP Mini Dome
- 2mp Mini Dome Camera
2MP Mini Dome Camera
A discreet, vandal-resistant 1080p IP dome camera for indoor and outdoor coverage. IR illumination, wide dynamic range and dual-stream H.264/H.265 encoding deliver clear footage day and night while keeping storage and bandwidth in check.
- 2MP (1080p) resolution, 30 ips dual-stream recording
- IP67 weatherproof, vandal-resistant dome housing
- IR illumination for True Day/Night performance
- Wide Dynamic Range for high-contrast scenes
- Corridor mode for hallways, aisles & tunnels
Product Overview

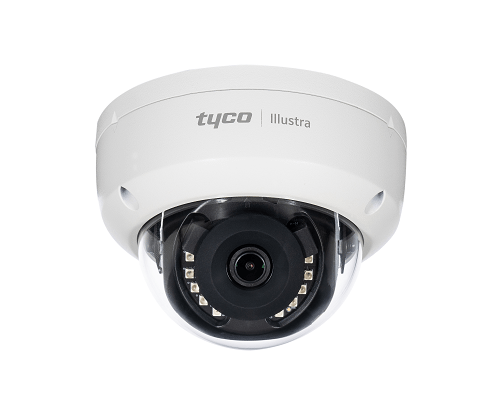

The TYCO Illustra Essentials Gen4 2MP mini dome camera delivers 1080p HD video in a low-profile, vandal-resistant dome suited to both indoor and outdoor installs. It supports dual-stream H.264/H.265 encoding to manage bandwidth, records at 1080p up to 30 ips, and carries an IP67 rating for dust and water protection.
The fixed 2.8mm lens is factory-focused for quick installation, and IR illuminators combined with True Day/Night switching keep footage usable after dark. Wide Dynamic Range holds detail across bright and shadowed areas of the same scene, and corridor mode rotates the image for narrow vertical spaces like hallways and aisles.
Where it's used
- Office entrances, corridors and stairwells
- Retail aisles and checkout areas
- Warehouses and loading bays
- Parking areas and building perimeters
Technical Specifications
| Image & Video | |
|---|---|
| Resolution | 2MP (1920 × 1080, 1080p) |
| Frame Rate | Up to 30 ips, dual-stream |
| Compression | H.264 & H.265 |
| Wide Dynamic Range | Supported |
| Day/Night | True Day/Night with IR cut filter |
| Special Modes | Corridor mode (vertical view) |
| Lens & IR | |
| Lens | 2.8mm fixed, factory-focused |
| IR Illumination | Built-in IR LEDs for low-light scenes |
| Environmental & Build | |
| Ingress Protection | IP67 (dust & water resistant) |
| Form Factor | Mini dome, vandal-resistant clear bubble |
| Setup | One-touch auto-focus |
| Compliance | |
| NDAA | Compliant |
| Brand / Series | TYCO — Illustra Essentials Gen4 Mini-Dome |
Full electrical, power and dimensional specs available on request — ask us for the manufacturer datasheet.
Key Features
Vandal-Resistant Dome
IP67-rated, low-profile housing resists tampering and handles outdoor mounting.
Clear Low-Light Video
Built-in IR and True Day/Night switching keep footage usable after dark.
Bandwidth Friendly
Dual-stream H.264/H.265 keeps storage and network load down without cutting quality.
Wide Dynamic Range
Balances bright and shadowed areas in the same frame, like doorways facing sunlight.
Quick Install
Factory-focused fixed lens and one-touch auto-focus mean less time on the ladder.
Corridor Mode
Rotates the frame for tall narrow spaces — hallways, aisles and stairwells.
